THÔNG SỐ KỸ THUẬT:
| MODEL | RML036/12B (In-built Battery) | |
| Capacity | 36kVA | |

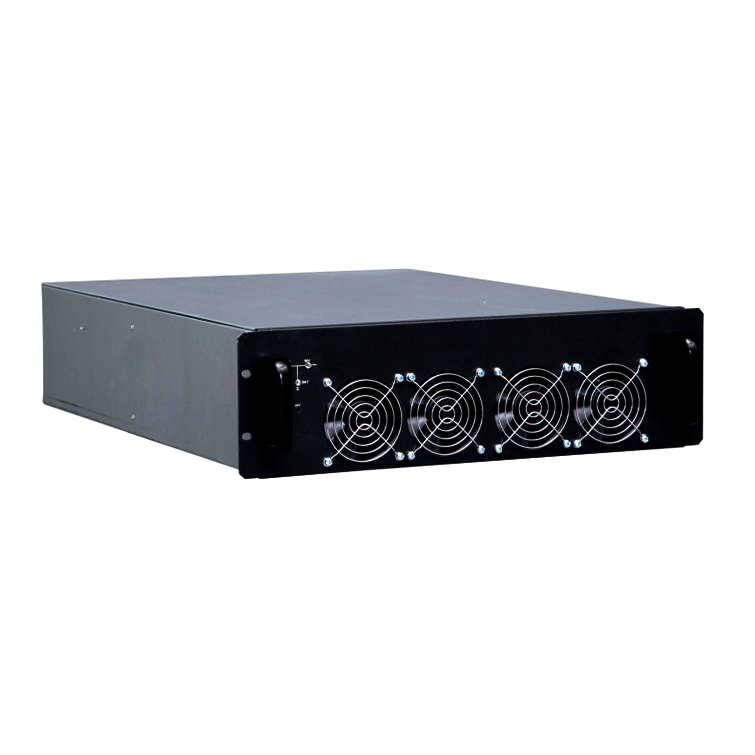

| Power module | PML12 (12kVA) | |
| INPUT | ||
| Phase | 3 Phase + Neutral + Ground, 200V/208V/220V (line to line) | |
| Voltage range | -0.65 | |
| Frequency range | 40Hz-70Hz | |
| Power factor | >0.99 | |
| THDi | THDi<3% @100% linear load | |
| OUTPUT | ||
| Voltage regulation | 1.50% | |
| THDu | THD<1% (linear load), THD<5.5% (non-linear load) | |
| Power factor | 0.8 | |
| Crest factor | 3:01 | |
| Overload capability | 110% for 1 hour; 125% for 10 min; 150% for 1 min; >150% for 200ms | |
| BATTERY | ||
| Voltage | ±120VDC | |
| Charge power | 20%*System Power | |
| Charge power precision | ±1% | |
| SYSTEM | ||
| System efficiency | Normal mode:>92%; ECO mode:>98%; Battery mode:>92% | |
| Display | LCD+LED, Touch Screen +Keyboard | |
| IP class | IP20 | |
| Interface (Communication port) | Standard: RS232, RS485, Dry contacts; Optional: SNMP | |
| Installation/Connection | Top or bottom cable connection | |
| Operation/Storage temperature | ||
| 0-40℃/-40-70℃ | ||
| Relative humidity | 0-95% (non-condensing) | |
| Noise | 55dB (1 meter away) | |
| PHYSICAL | ||
| Weight (kg) | Cabinet | 205 |
| Power Module | 22 | |

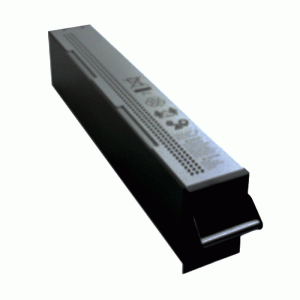

| Battery package | 10 (without battery) | |
| Cabinet | 600*1020*2000 | |
| Dimension | ||
| (W*D*H) | Power Module | 440*590*134 |
| (mm) | Battery package | 120*824*177 |
