THÔNG SỐ KỸ THUẬT:
| MODEL | DM060/30X | DM120/30X | DM180/30X | DM300/30X | |
| Capacity | 60kVA | 120kVA | 180kVA | 300kVA | |
| Power module PD30X(30kVA/27kW) | |||||
| INPUT | |||||
| Phase | 3 Phase + Neutral + Ground, 200V/208V/220V (line to line) | ||||
| 166-261Vac (line-line), full load; | |||||
| Voltage range | 166-125Vac (line-line), load derated from 100%-75% linearly | ||||
| Frequency range | 40Hz-70Hz | ||||
| THDi | <3% (full linear load) | ||||
| Power factor | >0.99 | ||||
| OUTPUT | |||||
| Voltage | 200V/208V/220V (line to line) | ||||
| Voltage regulation | ±1.5% | ||||
| THDu | <1.5% (linear load), <6% (none-linear load) | ||||
| Power factor | 0.9 | ||||
| Frequency range | 50/60Hz | ||||
| Overload capability | 110% for 60 min; 125% for 10 min; 150% for 1 min; >150% for 200ms | ||||
| BATTERY | |||||
| Voltage | ±120VDC | ||||
| Charge power | 20%*System Power | ||||
| Voltage precision | 1% | ||||
| SYSTEM | |||||
| Normal | 94% | ||||
| Efficiency | Battery | 94% | |||

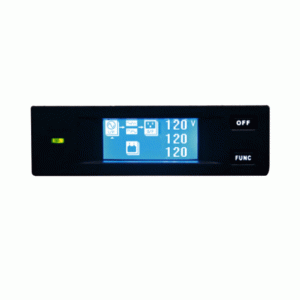

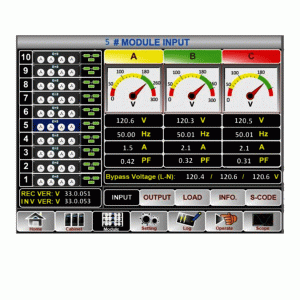

| Display | Color LCD touch screen+ LED+ Keyboard | ||||
| IP class | IP20 | ||||
| Standard: RS232, RS485, USB, Dry contacts(programmable) | |||||
| Interface | Option: SNMP, AS400, Parallel kit, Battery cold start(standard for 180kVA and 300kVA), Lightning protection components, Dust Filter, LBS | ||||
| Operation/storage | 0-40℃/-40-70℃ | ||||
| Relative humidity | 0-95% (non-condensing) | ||||
| Noise | 68dB @ 100% load, 65dB @ 45% load | 72dB @ 100% load, 69dB @ 45% load | |||
| PHYSICAL | |||||
| Weight (kg) | Cabinet | 210 | 350 | 490 | 900 |

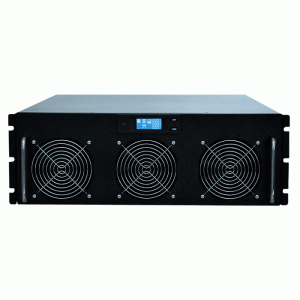

| Power Module | 45 | ||||
| Cabinet | 600*980*1150 | 650*960*1600 | 650*960*2000 | 1300*100*2000 | |
| Dimension (W*D*H) | |||||
| (mm) | Power Module | 510*700*178 | |||
