THÔNG SỐ KỸ THUẬT:
| MODEL | RM600/30X | ||
| Capacity | 600kVA/540kW | ||
| Power module | PM30X(30kVA/27kW) | ||
| INPUT | |||
| Phase | 3 Phase + Neutral + Ground,400V/415V(line to line) | ||
| Voltage range | 228V-304Vac (Line-Line),load decrease linearly according to the min phase voltage | ||
| Frequency range | 40Hz-70Hz | ||
| Power factor | >0.99 | ||
| THDi | THDi<3% @ 100% linear load | ||
| OUTPUT | |||
| Voltage | 380/400/415V | ||
| Voltage regulation | 1.50% | ||
| Power factor | 0.9 | ||
| THDu | THD<1%(linear load ),THD<5.5%(None linear load) | ||
| Crest ratio | 3:01 | ||
| Overload capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms | ||
| BATTERY | |||
| Voltage | ±240VDC | ||
| Charge power | 20%*System Power | ||
| Charge voltage precision | ±1% | ||
| SYSTEM | |||
| System efficiency | Normal mode:95% ;ECO mode:99% ;Battery mode:95% | ||

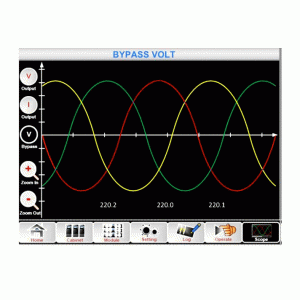

| Display | 10.4” Color touch screen LCD + LED + Keyboard | ||
| IP class | IP20 | ||
| Interface | Standard :RS232,RS485,Dry contacts, USB; | ||
| Optional: SNMP ,Expansion dry contact card | |||
| Operation/Storage temperature | 0-40℃/-40-70℃ | ||
| Relative humidity | 0-95%(non-condensing) | ||
| Noise | 72dB @ 100% load, 68dB @ 45% load (1 meter away) | ||
| PHYSICAL | |||
| Cabinet | 660kg | ||
| Weight | Power module | PM30X:34kg | |
| Dimension (W*D*H) | Cabinet | 2000*1050 *2000(mm) | |
| Power module | PM30X/ PM25X:460*790*134(mm) 460*790*134 |
||
