THÔNG SỐ KỸ THUẬT:

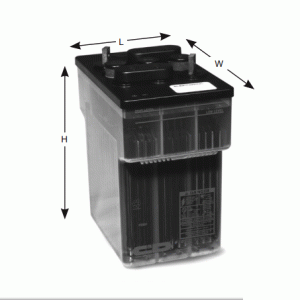

| Type of Battery | Part Number | Cells Per Unit | Plates Per Cell | Dimensions | Approx. wt. lbs (kg) | Electrolyte per cell gal (l) | ||
| L | W | H | ||||||
| in (mm) | in (mm) | in (mm) | ||||||
| 3XDJ-7 | CW17653-PVC | 3 | 7 | 8.09 (205.5) |
13.58 (344.9) |
15.22 (386.6) |
96 (44) | 1.19 (4.50) |
| 3XDJ-9 | CW17654-PVC | 3 | 9 | 114 (52) | 1.06 (4.01) | |||
| 3XDJ-11 | CW17655-PVC | 3 | 11 | 132 (60) | 0.92 (3.48) | |||
| 2XDJ-7 | CW17656-PVC | 2 | 7 | 64 (29) | 1.19 (4.50) | |||
| 2XDJ-9 | CW17657-PVC | 2 | 9 | 76 (34) | 1.06 (4.01) | |||
| 2XDJ-11 | CW17658-PVC | 2 | 11 | 88 (40) | 0.92 (3.48) | |||
