THÔNG SỐ KỸ THUẬT:

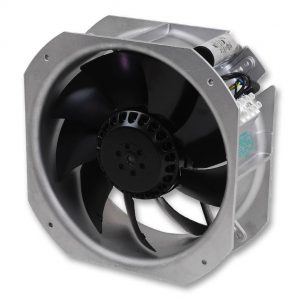

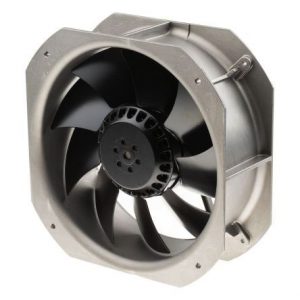

| Type | W2E200-HH38-01 | ||
| Motor | M2E068-BF | ||
| Phase | 1~ | 1~ | 1~ |
| Nominal voltage [V] | 230 | 230 | 230 |
| Frequency [Hz] | 50 | 60 | 60 |
| Type of data definition | fa | fa | fa |
| Valid for approval / standard | CE | CE | UL 2111 |
| Speed [min-1 ] | 2550 | 2800 | 2800 |
| Power input [W] | 64 | 80 | 85 |
| Current draw [A] | 0.29 | 0.35 | 0.36 |
| Motor capacitor [µF] | 1.5 | 1.5 | 1.5 |
| Capacitor voltage [VDB] | 450 | 450 | 450 |
| Max. back pressure Pa | 100 | 100 | 120 |
| Min. ambient temperature °C | -25 | -25 | -25 |
| Max. ambient temperature °C | 60 | 65 | 65 |
| Starting current A | 0.55 | 0.54 | 0.54 |
